Flanged Diver Switch (AL7075)

Flanged Diver Switch (AL7075)

Contact Prevco for up-to-date pricing

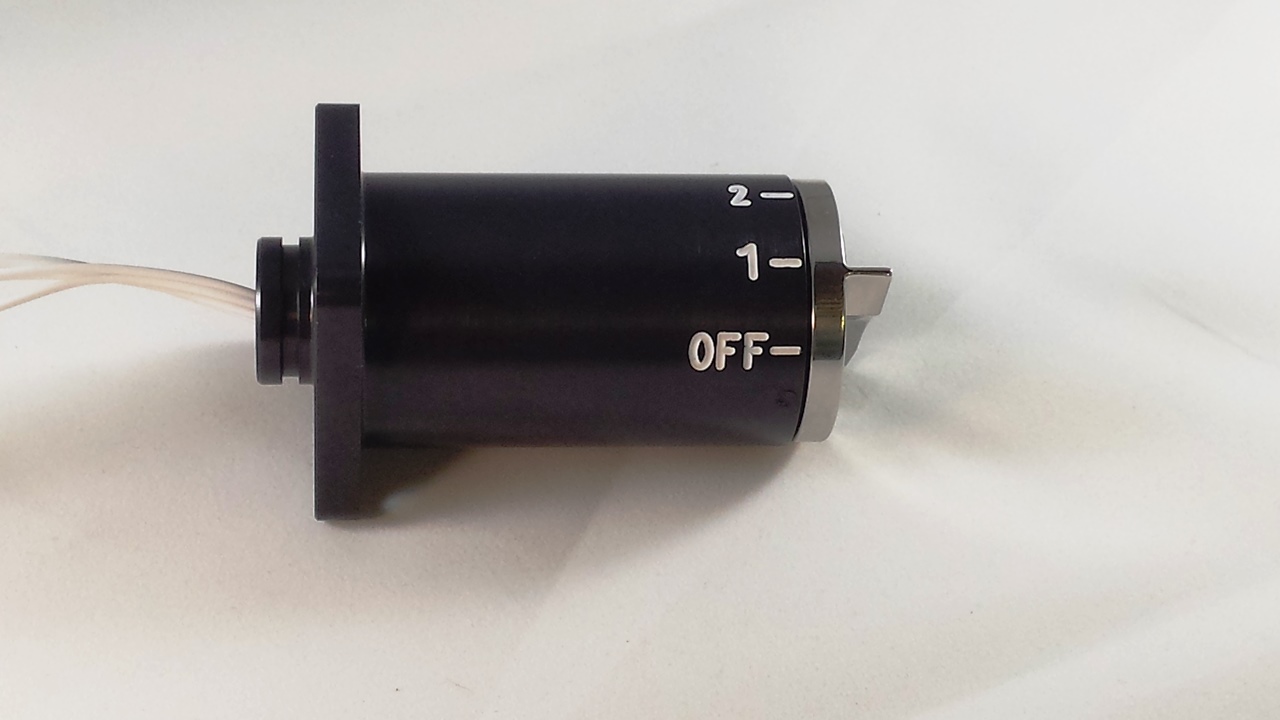

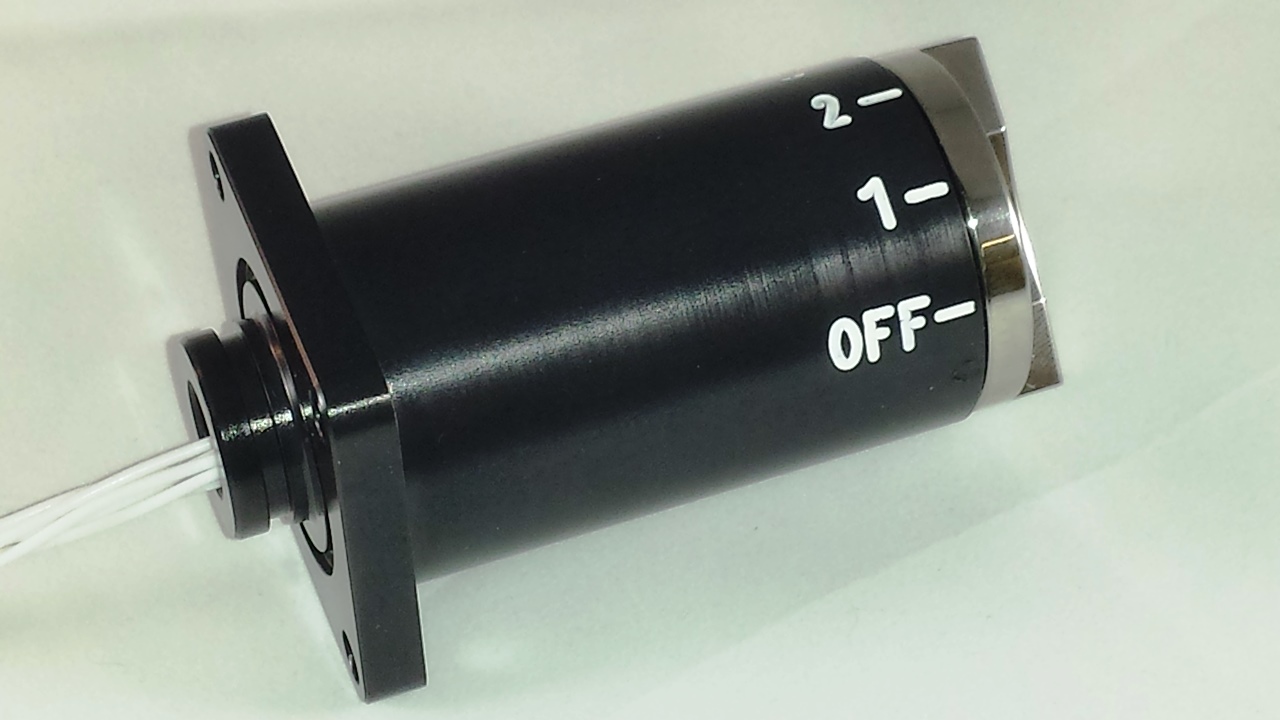

A bulkhead mounted switch with multiple positions and rated for 6000m. The switch is customizable and allows subsea control over several functions, for instance turning batteries on and off to save power when not in use. Contact Prevco for up-to-date pricing

Categories: ,

The device can control a number of functions due to the multi-deck internal rotary switch, which in the current model has up to 4 switch positions. This could be useful during a system setup and helps to conserve battery power when equipment not in use and also gives control over a several functions. The current designs on offer are made from Al7075-T6 or Titanium Grade 5 and both have a depth rating of 6000m. There are obvious differences in these materials as far as corrosion resistance, durability and cost and Prevco would be happy to advise which is most suitable for your application. The switch can be hand held or mounted directly to a bulkhead with an FCR style interface. Custom options including depth rating, material and number of switch functions are also available.

Technical Specifications

Features

  • Bulkhead mounted
  • Rotary switch
  • 6000m rated
  • Custom Options Available
  • Make Before Break 115VAC (Resistive) or 6-28VDC @ 1 amps

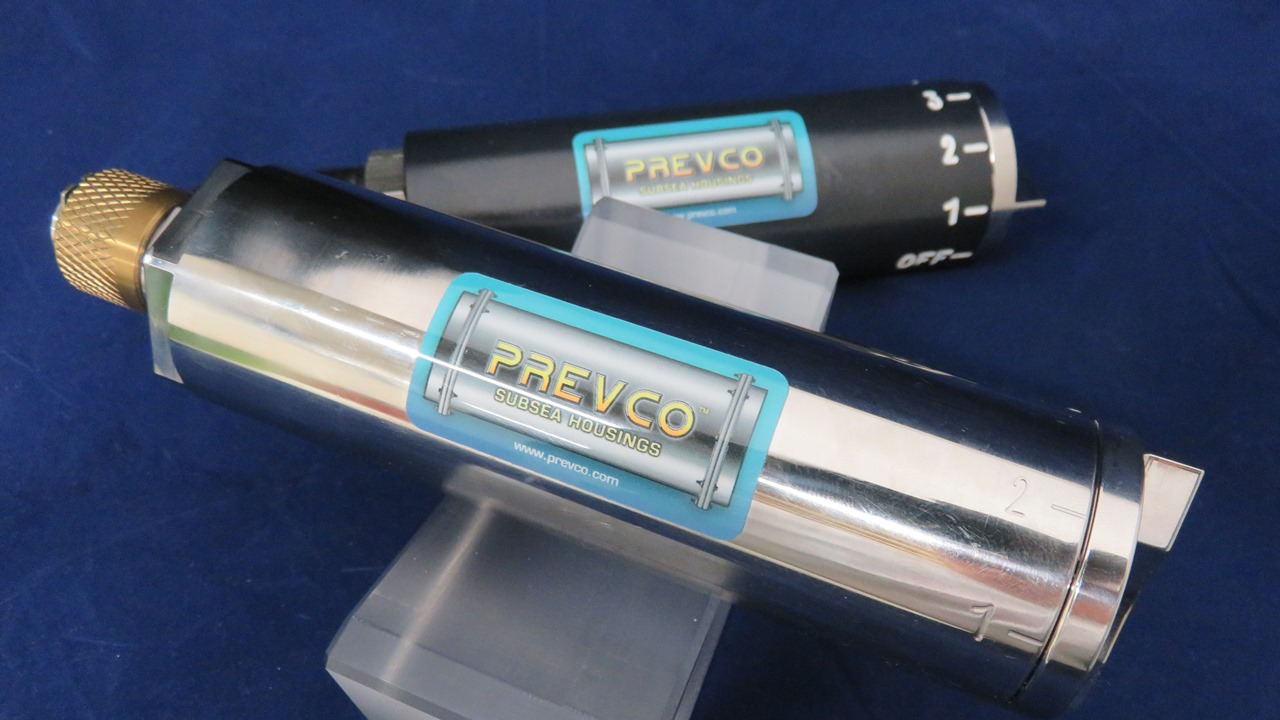

  • Also available as a Hand-Held Switch
  • Break Before Make 115VAC or 6-28VDC @ 1 amp, 2 amps or 5 amps

Components

  • Al 7075 or Titanium Grade 5
  • Electrical switch
  • Buna O-rings

Resources

Additional information

Weight 1.0625 lbs
Dimensions 5.5 × 2 × 2 in
Quantity

1 – 100, 101 – 1000
