P6.501 PVC Housing – 100m Depth Rating
P6.501 PVC Housing – 100m Depth Rating
$1,998.00 z VAT

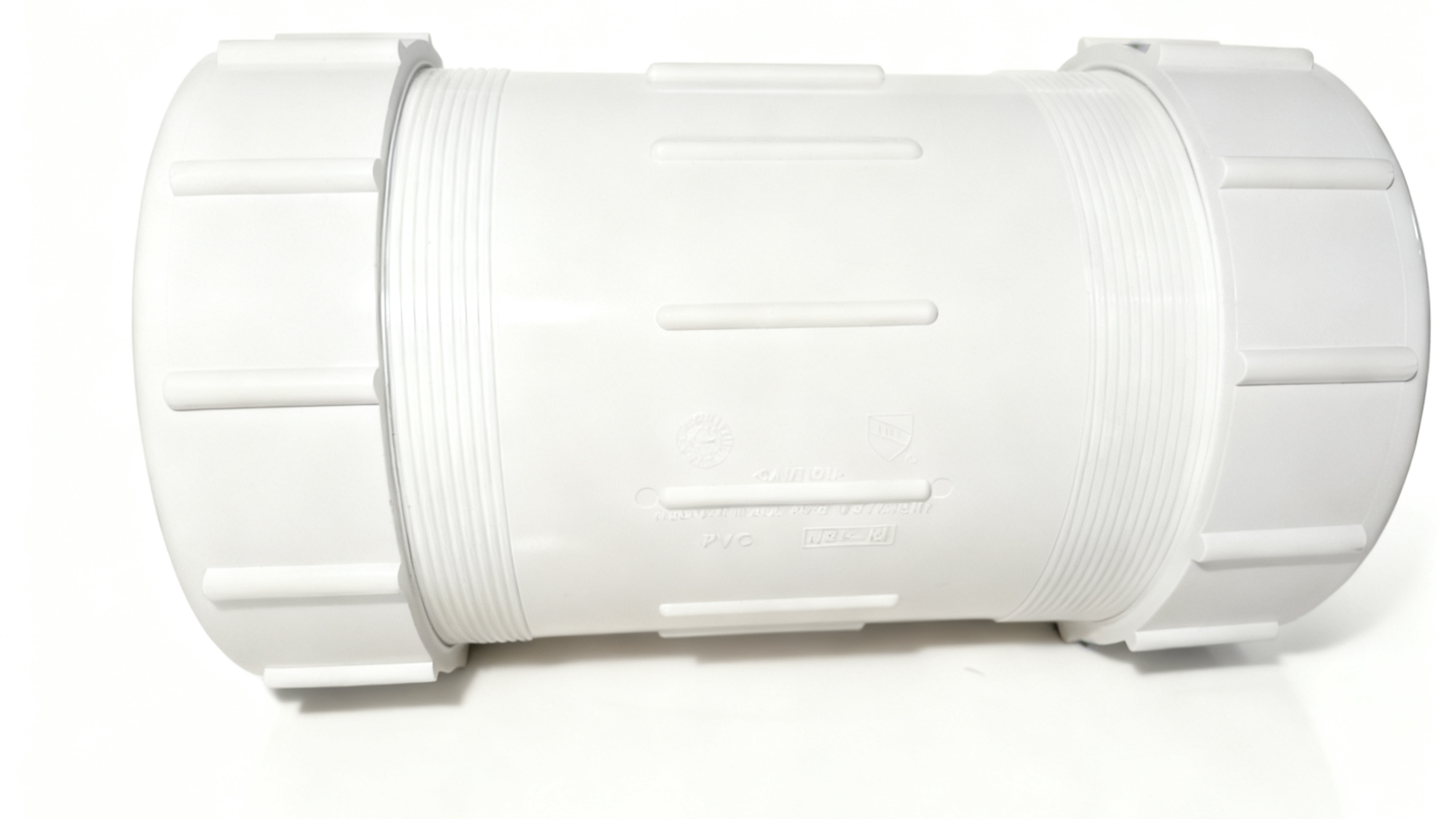

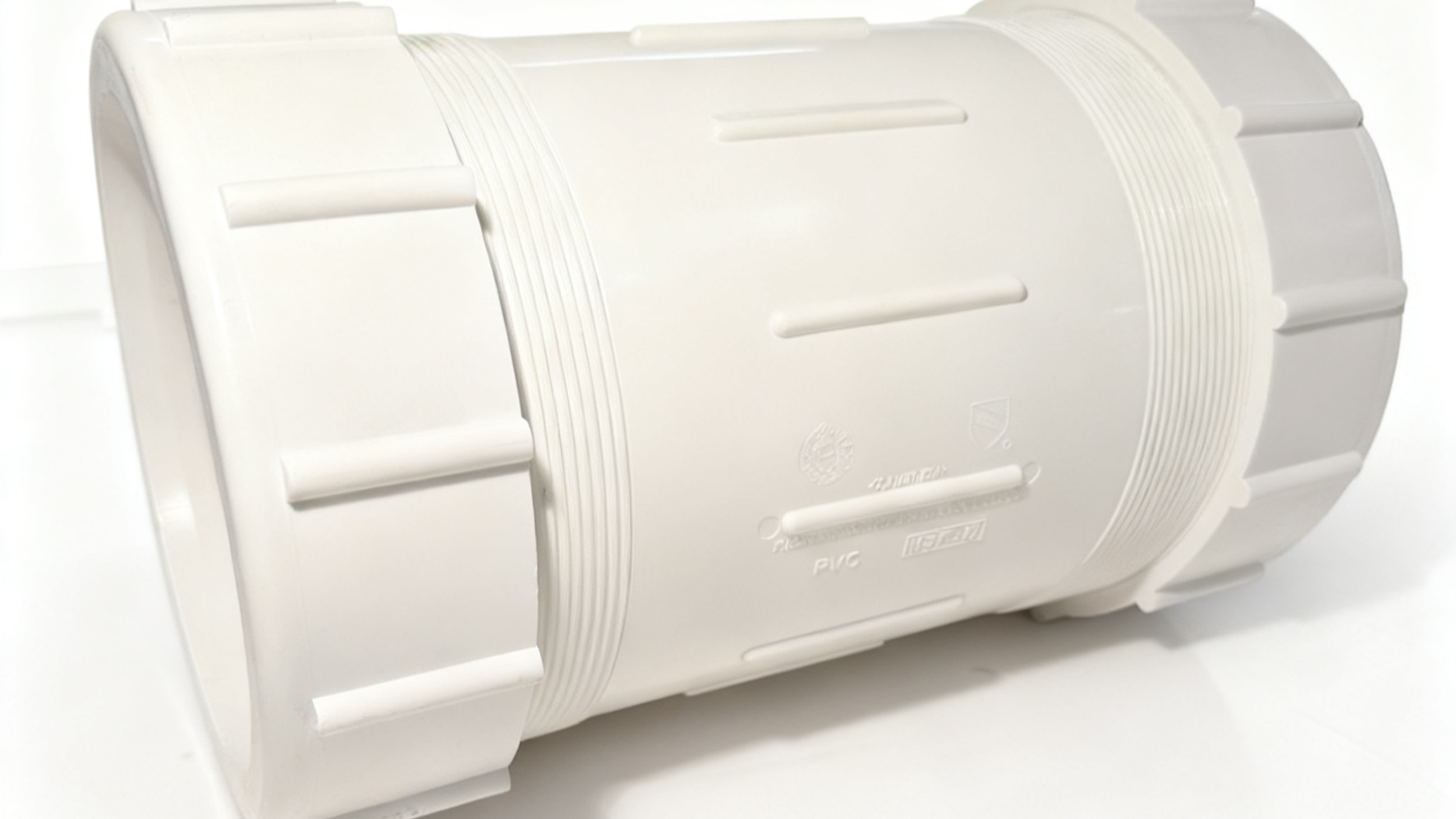

The PREVCO Stock P6.501 PVC housing is fitted with optically clear acrylic end caps. The packaging diameter is 6.50” (165.1mm) a packaging length of 7.7” (195.6mm) These housings are sold barefoot (unmodified) and include all hardware and O-rings including spares, and our Stainless Steel dual seal vent plug – P/N 00669-001 (not fitted). The end caps are supplied as blanks, ready to be machined for connector interfaces as required. We can also provide internal brackets/shelves to hold your electronics and they can include an internal pressure compensating bladder so that they can be used as PBOF housings (pressure balanced oil filled) If you would like us to quote for for connector modifications or any external/internal hardware please contact PREVCO for a quote.
The PREVCO Stock P6.501 PVC housing is fitted with optically clear acrylic end caps. The packaging diameter is 6.50'' (165.1mm) a packaging length of 7.7'' (195.6mm) These housings include all hardware and O-rings including spares, and our dual seal vent plug - P/N 00669-001. The end caps are supplied unmodified, ready to be machined for connector interfaces as required. We can also provide internal brackets/shelves to hold your electronics and they can include an internal pressure compensating bladder so that they can be used as PBOF housings (pressure balanced oil filled) Contact PREVCO for more information.
Technical Specifications
- Threaded endcaps for easy on off operation
- Clear Acrylic windows
- 6.5'' (165.1mm) inside packaging diameter
- 100m maximum operating depth
Components
- Clear Acrylic endcaps
- PVC Plastic Tube
- Viton O-rings
Resources
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 13 × 9 × 9 in |
