Dual Seal PRV Inconel – 10psi

Dual Seal PRV Inconel – 10psi

$695.71 - $993.87 z VAT

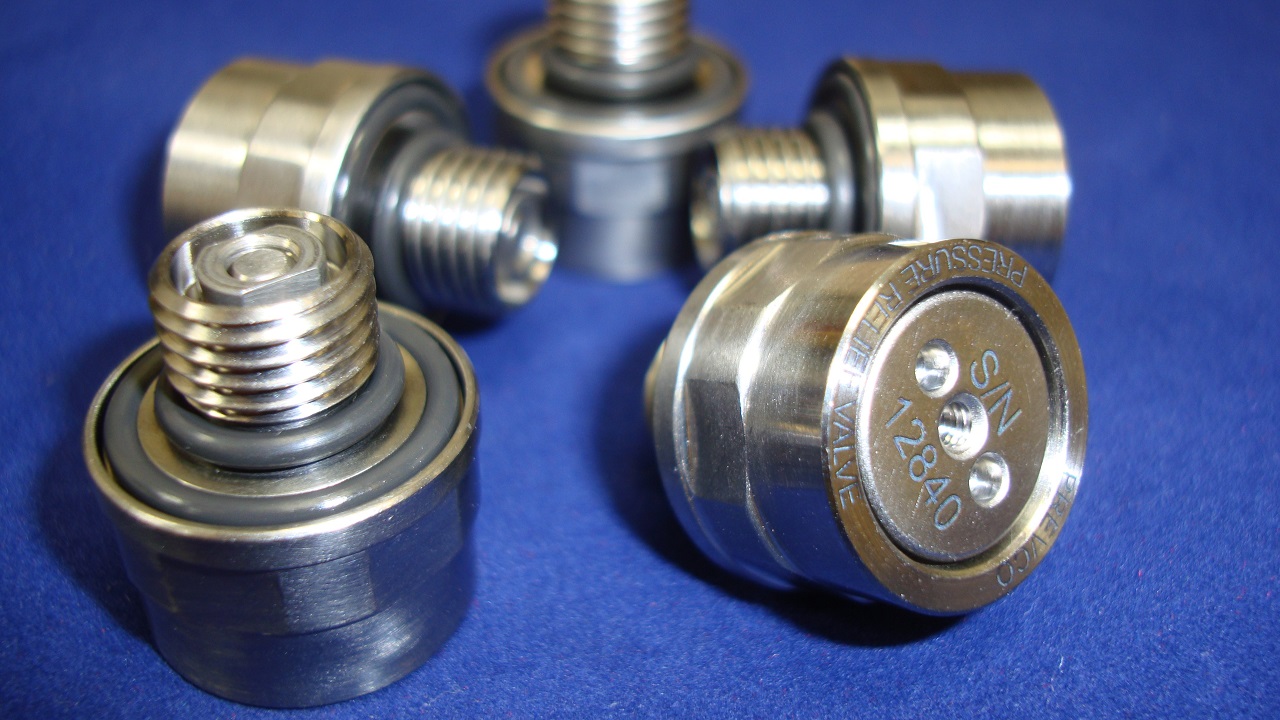

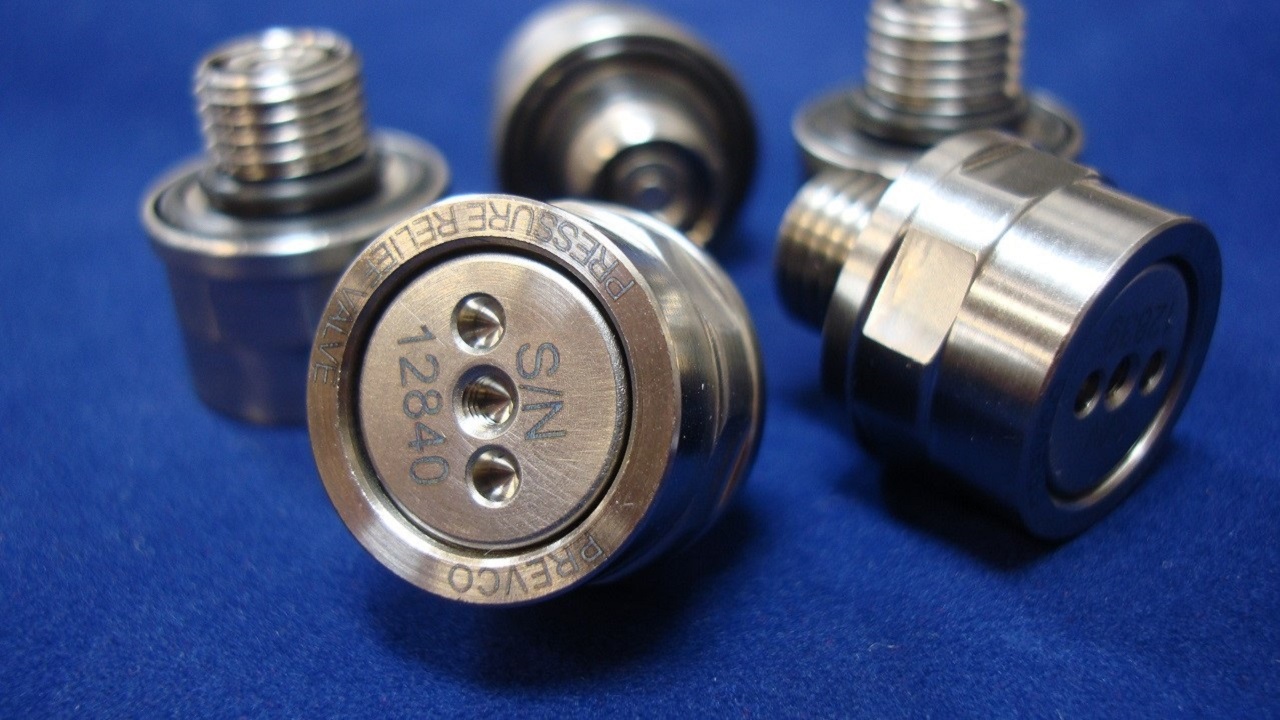

6000 Meter Rated, Single Poppet, Inconel High Pressure Relief Valve, Cracking Pressure 10psi

65 in stock (can be backordered)

Quantity Price
1 - 10 $993.87
11 - 25 $884.54
26 - 50 $795.10
51 - 100 $695.71
101+ $695.71
x

Pressure Relief Valves maintain a low differential pressure and reduce the risk of injury in systems that incorporate internal components which off-gas or other sources of pressure buildup that can create a dangerous high internal pressure situations. Our Pressure Relief Valves fit in a Standard #4 SAE Port* (Same as PREVCO Dual Seal Vent Plug) These pressure relief valves are available from stock in both Titanium and Inconel, both of which are high-specification materials suitable for a wide variety of high-stress and corrosive applications.

Technical Specifications

Features

  • Inconel 625
  • Safety Feature for Pressure Vessels
  • Limits Catastrophic Blowout of Endcap during Dis-assembly
  • Especially important when batteries or off-gassing components are enclosed
  • Relieves at - 10psi differential
  • Dual main interface seals
  • 6000m operating depth
  • Fits in standard #4 SAE interface port
  • See interface control drawing in link below for mounting interface

Components

  • Inconel 625 for all parts exposed to sea water
  • Viton O-rings as standard

Resources

Additional information

Weight 0.0625 lbs
Dimensions 1 × 1 × 1 in
