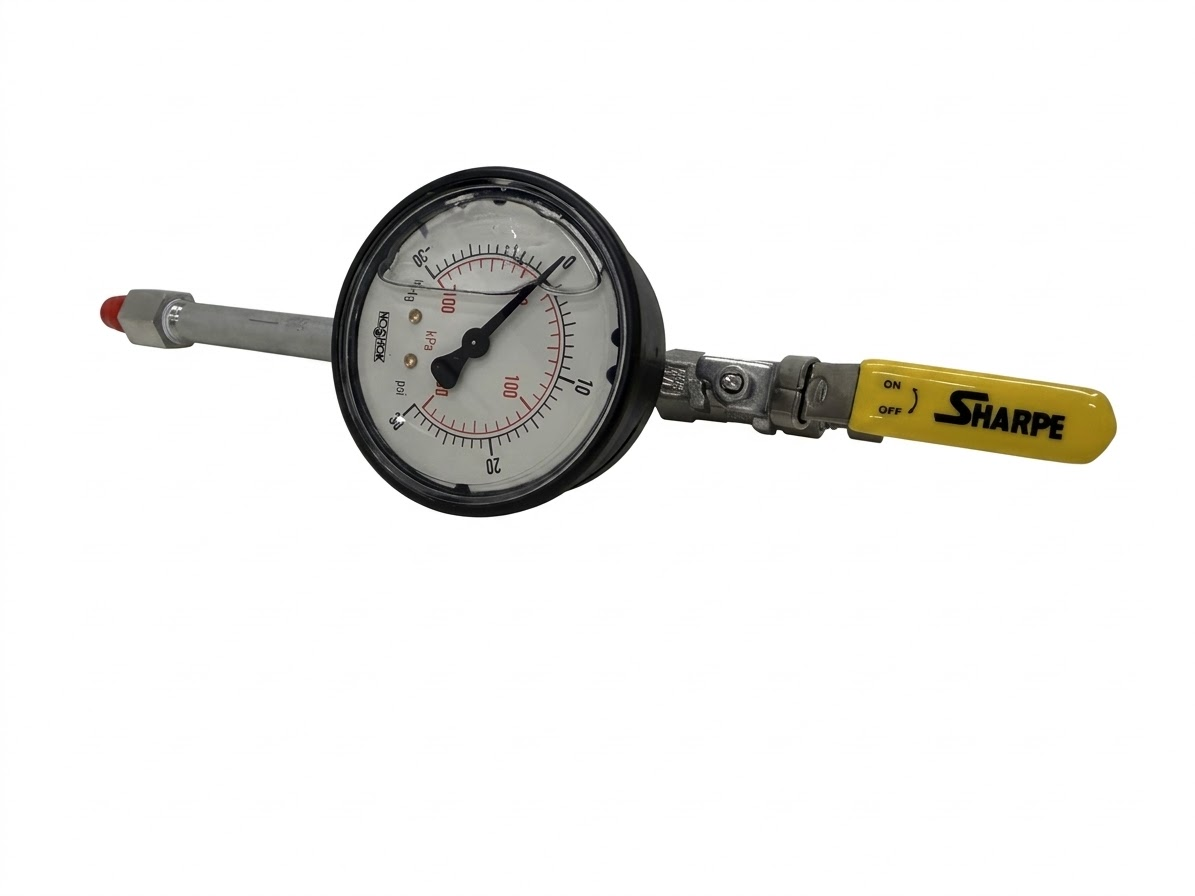

The Vacuum Manifold is an essential part of the Vacuum Leak Test Kit It incorporates the interface to the standard #4 SAE Vent port opening on the enclosure (which can be removed and you can adapt to a 1/4 NPT thread to other interfaces if needed). It also has a Pressure and Vacuum gauge and a shut off valve. The Vacuum Manifold is a sub component of our popular vacuum leak test kit which includes the vacuum pump, nitrogen bottle and everything you need to perform this operation...

Technical Specifications

Features

• The interface between Housing and Vacuum system

Components

• Vacuum and Pressure Gauge
• Valve
• #4 SAE Male Interface

Resources

• Vac kit manual
• Part number: 01398-801
