A1207SD(TB) 700m Rated
A1207SD(TB) 700m Rated

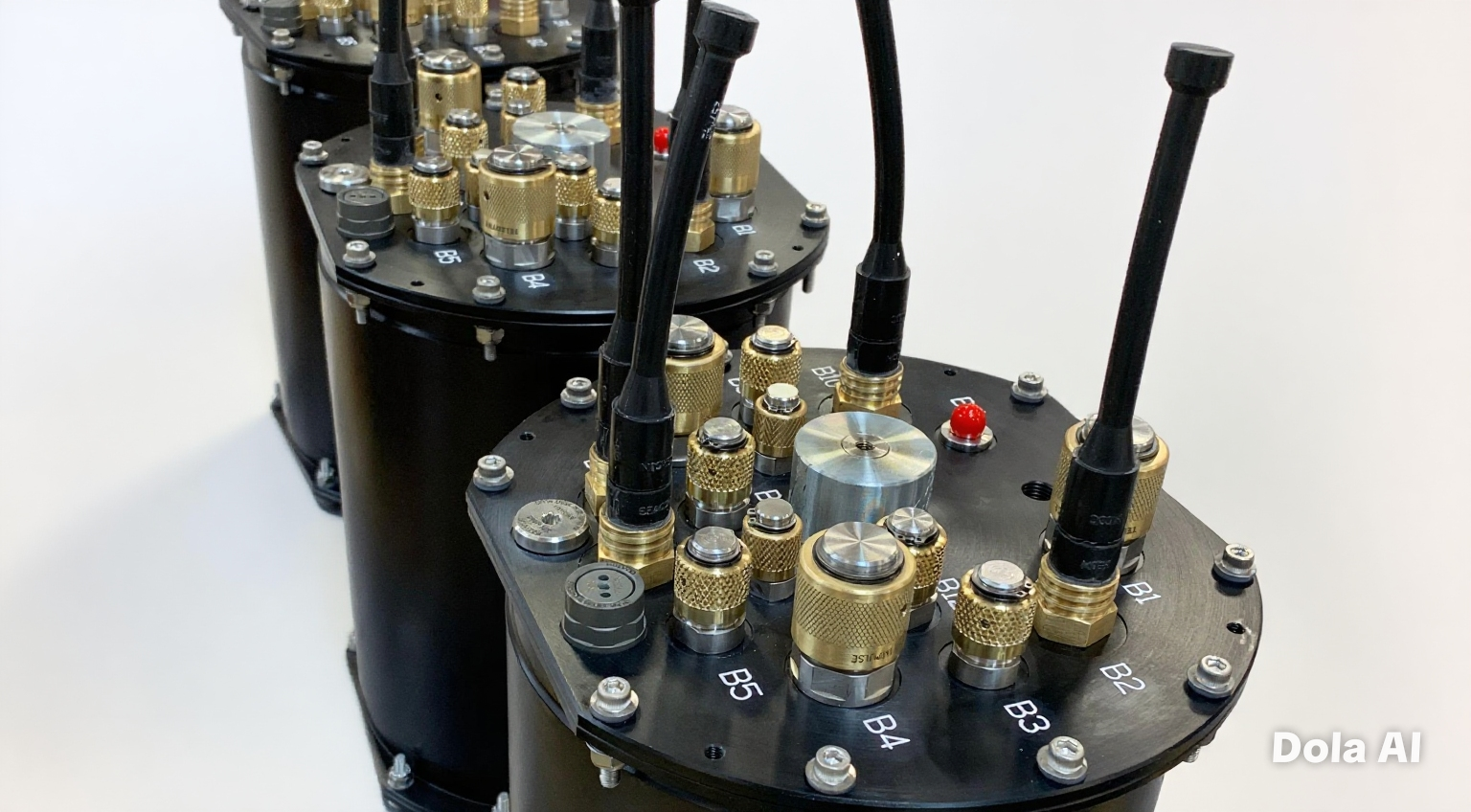

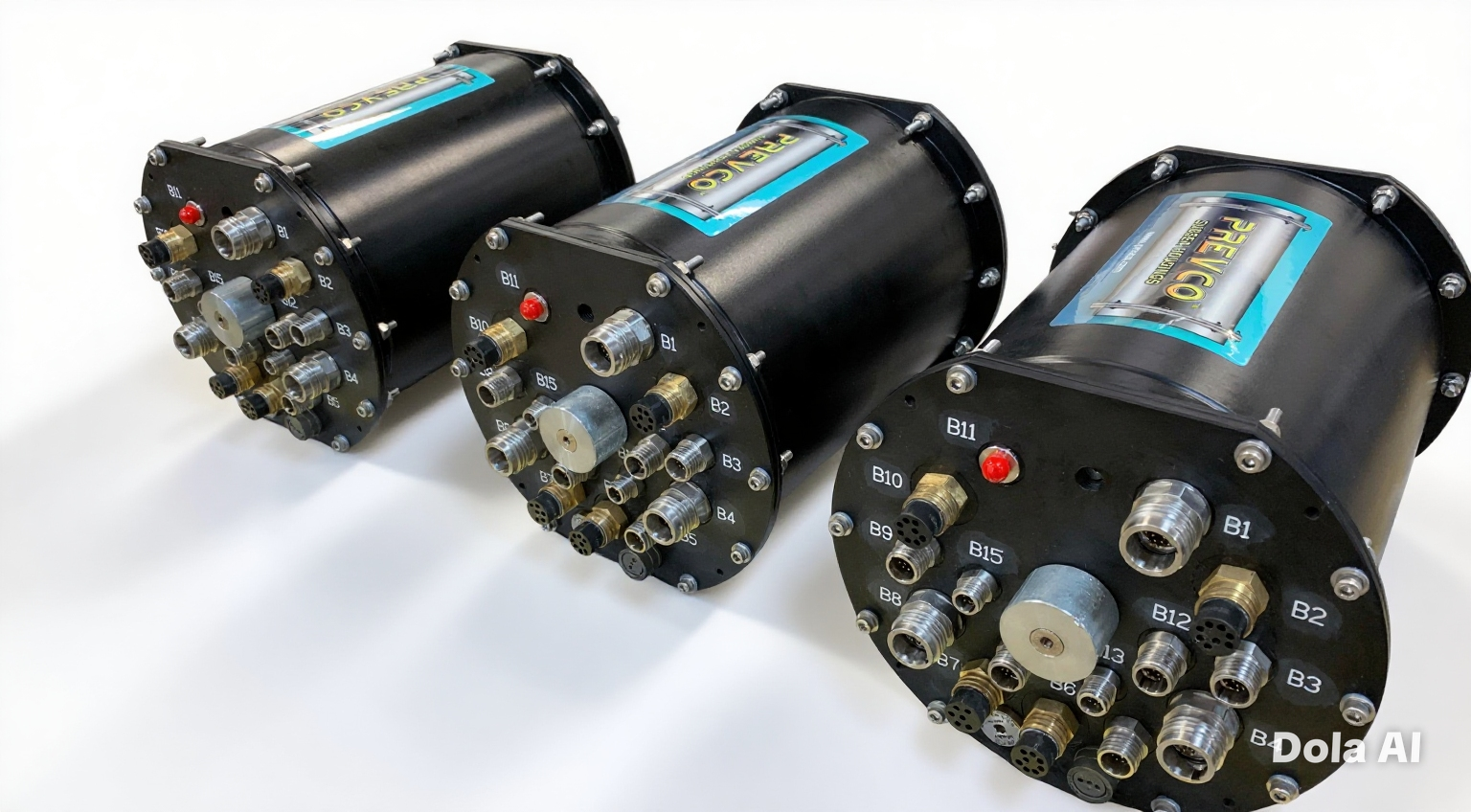

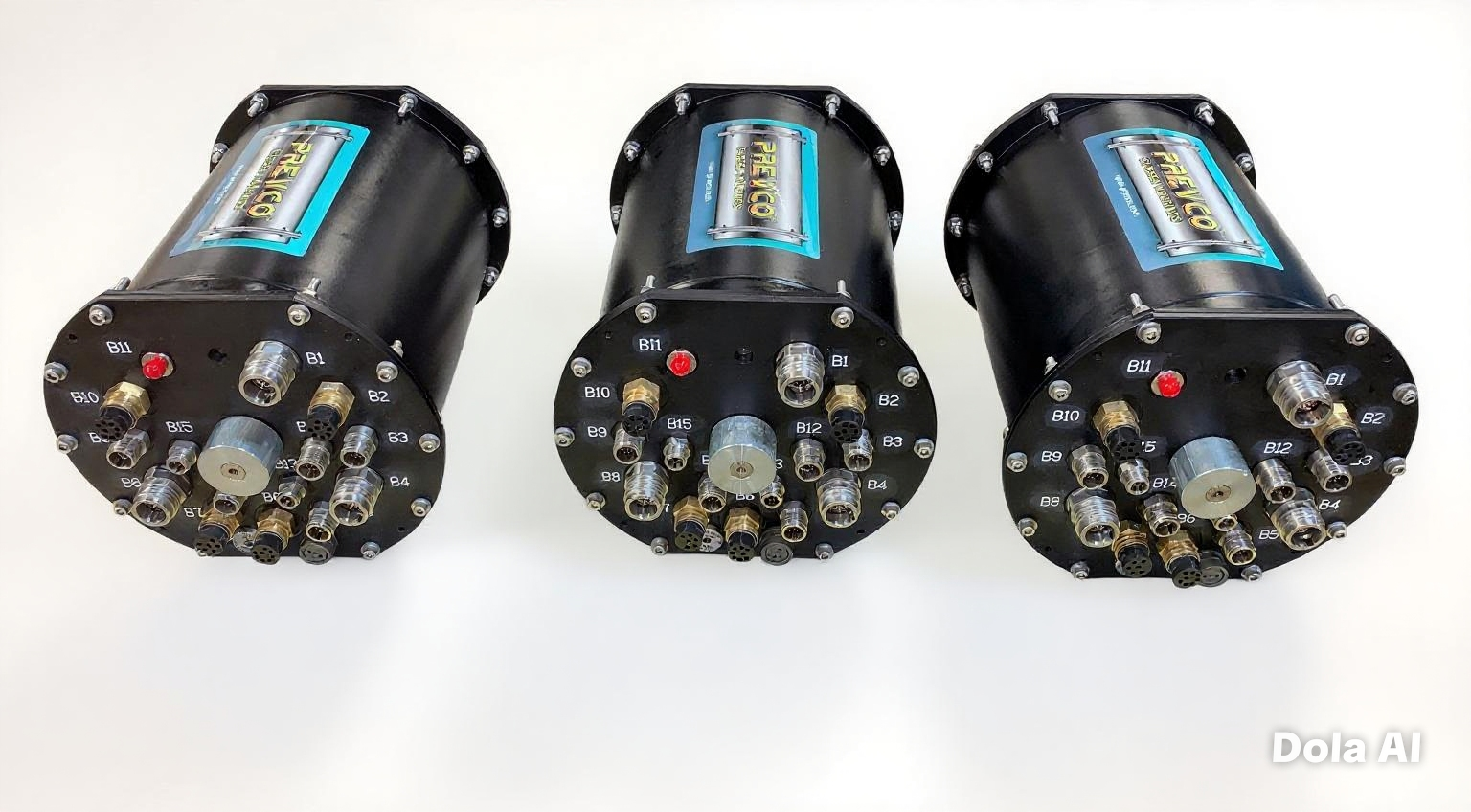

One of our most popular ‘stock design’ housings, the Model A1207 is made of Hard Coat Anodized Aluminum and has a 11.79 inch Packaging ID (299mm) and a stock or custom packaging lengths. Contact Prevco for a quote.
Stock Lengths are 18” 24” and Custom
The standard lengths are 18” 24” and Custom but we stock the raw tube material so they can quickly be made in almost any length. The housing can be fitted with a conical frustum Acrylic window for use with camera's, lasers etc. or for applications where it is important to be able to see in or out of the enclosure.
This model can be bought 'barefoot' without modifications. This means that the endcaps would not be anodized, there would be no pressure testing and there would not be a vent plug included. If you would like us to quote for connector interfaces, brackets, pressure relief valves or chassis etc. please use the request a quote tab and let us know what you need!
Technical Specifications
Features
- 11.79'' (299mm) inside packaging diameter
- Stock and Custom Lengths
- 700m maximum operating depth depending on length
Components
- Aluminum 6061-T6
- Hard codizedoat an
- Buna O-rings as standard
- Zinc anode (Zincoid) included
Resources
- Generic Outline Assembly Drawing
- Generic outline assembly drawing
- Aluminum Stock Table
