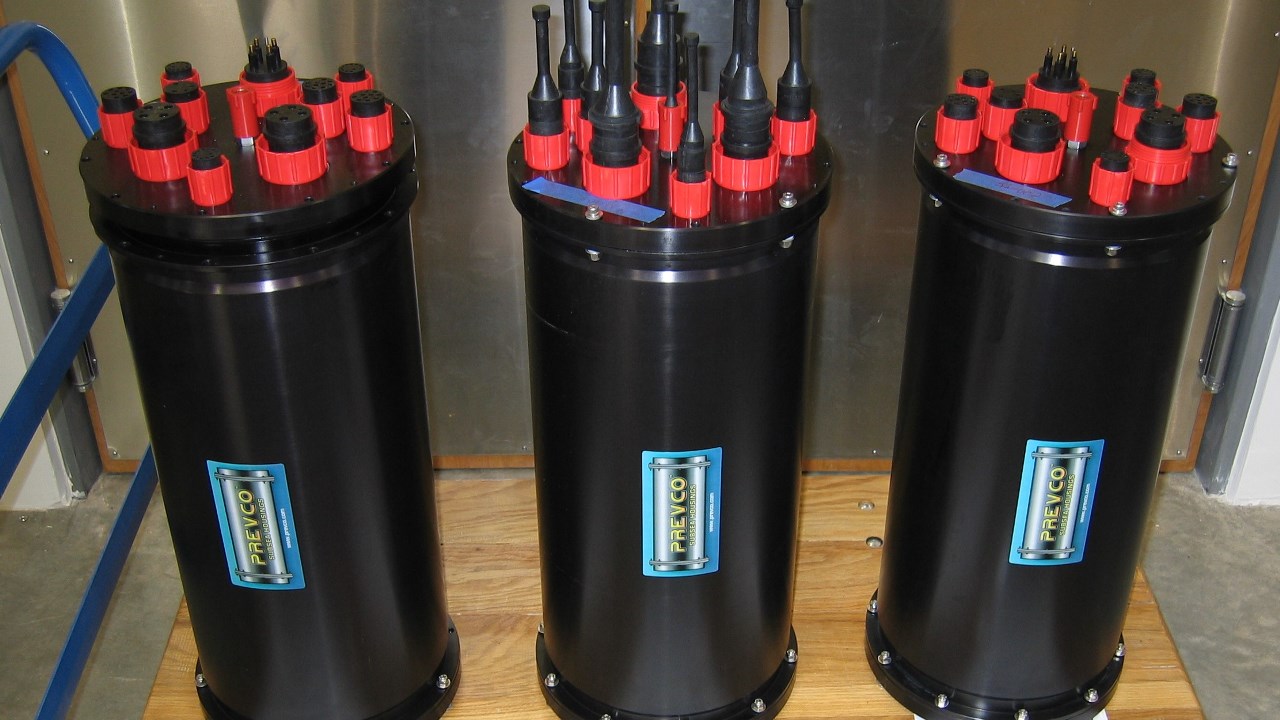

One of our most popular 'stock design' housings, the Model A1010 is made of Hard Coat Anodized Aluminum and has a 9.77-inch Packaging ID (248.15mm) and length of 24'' (609.6mm) and can be made to almost any length requirement. Contact Prevco for a quote.


The standard lengths are 18, 24,30 and 36''(457.2mm - 609.6mm - 762mm - 914.4mm) but we stock the raw tube material so they can quickly be made in almost any length. The housing can be fitted with a conical frustum Acrylic window for use with camera's, lasers etc. or for applications where it is important to be able to see in or out of the enclosure.

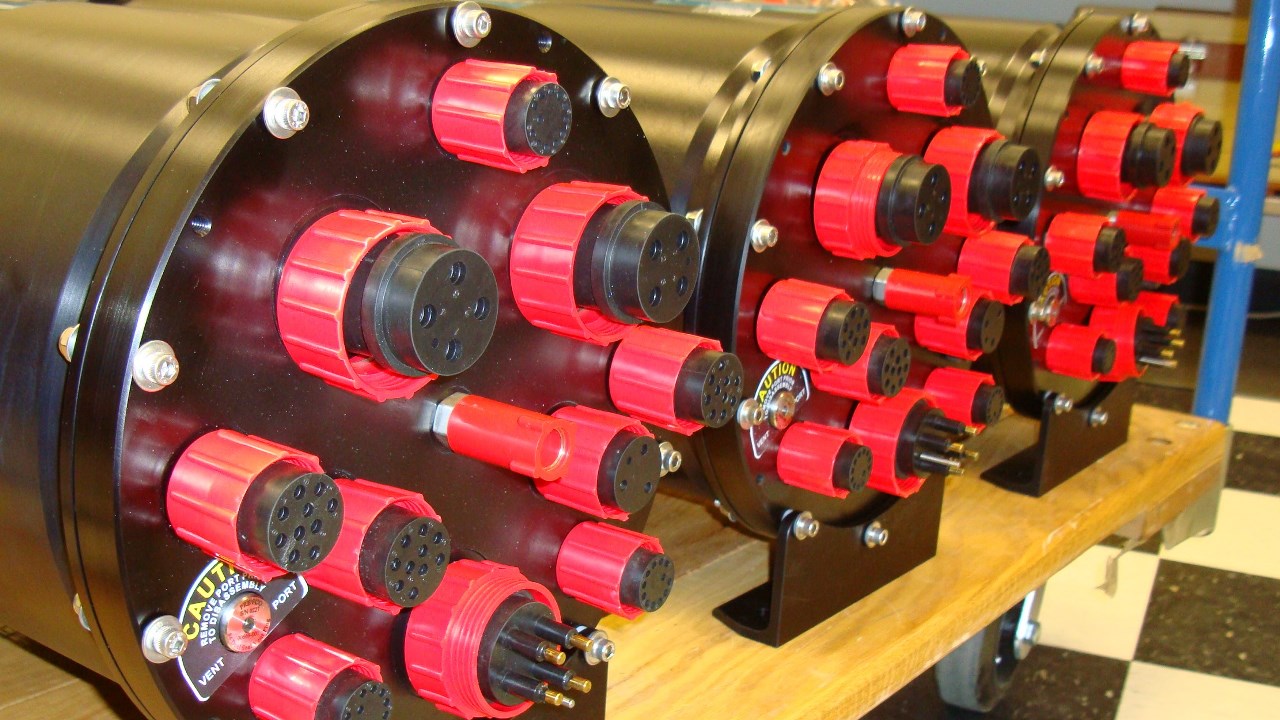

The model quoted is what we call 'barefoot' without modifications. This means that the endcaps would not be anodised, there would be no pressure testing and there would not be a vent plug included. If you would like us to quote for connector interfaces, brackets, pressure relief valves or chassis etc. please use the request a quote tab and let us know what you need!

Technical Specifications


  • Custom lengths available
  • 9.7'' (246.38mm) Inside packaging diameter
  • 24'' (609.6mm) Inside packaging length
  • 1000m maximum operating depth


  • Aluminum 6061-T6
  • Hard coat anodized
  • Buna O-rings as standard
  • Zinc anode (Zincoid) included
